Advantages & Applications:
Cable glands are connectors used to seal the ends of cables and secure them to plugs, terminals, housings, or various electrical devices. They protect sensitive wires from moisture, contamination, corrosion and even flammable gases.
Cable Glands are used for laying cables outdoors or in harsh environments, and for passing cables through panels or bulkheads. Cable glands are suitable for all types of power, data, control, instrumentation, automation and telecommunications cables.
They have many alternative names including mechanical cable glands, cord connectors, cable fittings and cord grips.
304, 316, 316L Stainless Steel Temperature Resistant PG7-PG48 Cable Glands with Fluoroelastomer Seals have the ability of chemical and mechnical resistance, corrosion resistance and heat resistance, and it also has the ability of high breaking tensile strength, high tenacity and optimum water resistance and long service time.
It is resistant to dust, dirty, seawater, acid, alcohol, oil, grease and common solvent. Besides, it does well in insulation, secure and safe.
They are popular in the applications of shipbuilding, offshore platform and facility, paper making, sewerage treatment, electrical and electronic technologies, telecommunications, automatic control, power supplies, distribution boxes, solar PV modules, Inverters, lightings, surveillance cameras, plant engineerings, machines and other harsh or corrosive environment, etc.
Product details:
| No. | Item | Description |
| 1 | Place of origin: | Zhejiang, China |
| 2 | Manufacturer: | Yueqing Sino Cable Gland Factory |
| 3 | Product name: | 304, 316, 316L Stainless Steel Temperature Resistant PG7-PG48 Cable Glands with Fluoroelastomer Seals |
| 4 | Models: | PG7,PG9,PG11,PG13.5,PG16,PG21,PG29,PG36,PG42,PG48 |
| 5 | Material: | Stainless Steel AISI304, AISI304L, AISI316 or AISI316L |
| 6 | Seal & O-ring: | Fluorine rubber |
| 7 | Plastic insert: | Polyamide 66 approved by UL, 94V-2 (also available in 94V-0) |
| 8 | Surface treatment: | Polishing |
| 9 | Colors: | Metallic silver |
| 10 | Features: | provide excellent strain relief for cables and provide IP68 protection against the ingress of dirt, water and other liquids. anti-oxidation, resistance to sunlight and ozone, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc. |
| 11 | Certifications: | CE, ROHS, REACH, IP68 |
| 12 | Protection: | IP68 (when the cable diameter is within the clamping range and mount the O-ring) |
| 13 | Thread standard: | According to DIN EN40430 |
| 14 | Working temperature: | Normal use: -50 ℃ to 200 ℃ |
| Short term: -60 ℃ to 250 ℃ |
| 15 | Quality grade: | High quality |
| 16 | OEM services: | Available |
| 17 | Supply capability: | 500,000 pieces per month |
| 18 | Price advantage: | Lowest prices from direct factory |
| 19 | Minimum quantity: | Negotiable |
| 20 | Sample availability: | Free samples are available upon request |
| 21 | Delivery time: | 7-10 days after confirmation of orders |
| 22 | Payment terms: | T/T, Western Union, Cash, L/C at sight |
| 23 | Delivery terms: | EXW, FCA, FOB, CIF, CNF |
| 24 | Shipping ways: | by courier (EMS, TNT, DHL, UPS or FEDEX) |
| by air (Shanghai / Ningbo) |
| by sea (Shanghai / Ningbo) |
| 25 | Export packing: | 100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label) |
| 100 pieces per box, 50 pieces per box (white box or OEM color box) |
| other special packings also available on request |
|
|

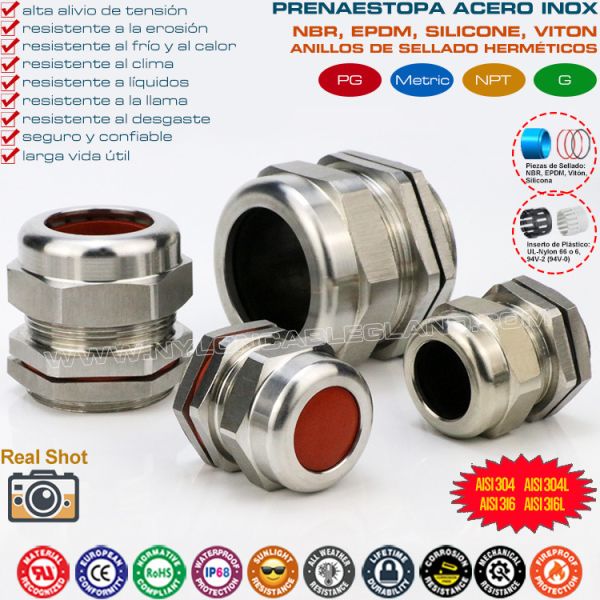

304, 316, 316L Stainless Steel Temperature Resistant PG7-PG48 Cable Glands with Fluoroelastomer Seals Images
|
